ME-限位开关/Limit switches

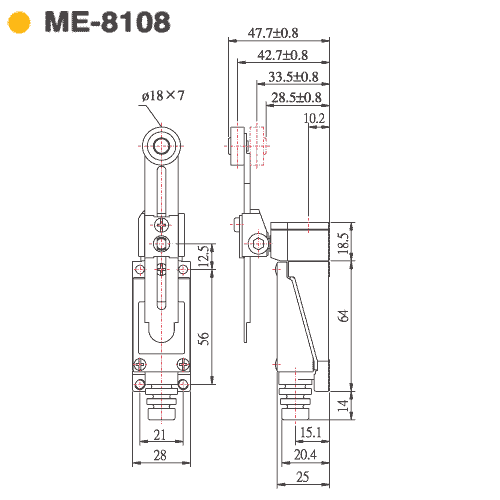

ME-8108
Please Login or Signup for pricing and to place order.







◆    CIRCUITRY

◆    FEATURES

1.      Wide choice of heads and actuators.

2.      Variety of operating characteristics.

3.      Captive cover screws.

4.      Mode of operation is field adjustable.

5.      Internal grounding screw.

6.      Dustproof,Oil-tight,Water-Resistant.

7.      Temperature range +5℉ to +160℉.

◆    RATING

5A

250V AC(resistive)

0.4A

115V DC(resistive)

◆    CHARACTERISTICS

Operating speed

0.5mm to 50m/sec

Operating frequency

Mechanically: 120 operations/min.

Electrically: 30 operations/min.

Contact resistance

15m Ω max. (initial)

Insulation resistance

100M Ω min.(at 500V DC)

Dielectric strength

1000 V AC,50/60 Hz for 1 minute between non-continuous terminals

2000 VAC, 50/60 Hz for 1 minute between each terminal and non-current-carrying metal part and between each terminal and ground

Vibration

Malfunction durability: 10 to 55Hz ﹔

1.5mm double amplitude

Shock

Mechanical durability:Approx.1000m/sec2(approx. 100G’s)

Mechanical durability:Approx. 300m/sec2(approx. 30 G’s)

Ambient operating temperature

Operating:-15℃ to + 70℃

Humidity

95% RH max

Service life

Mechanically: 10,000,000 operations min

Electrically: 300,000 operations min,(2.5A,110V AC) MAX.

Degree of protection

IEC 529 class IP65

◆    ORDER GUIDE

1.      Standard type (Nylon plastic roller):

ME-8104

ME-8107

ME-8108

ME-81111

ME-8112-P

ME8122-P

ME-8166

ME-8169

ME-9101

ME-8000

2.      Metal roller  (Custom made):

ME-8104-M

ME-8108-M

ME-8112

ME-8122

3.      φ50mm rubber’s roller(Custom made):

ME-8104-L

Me-8108-L

4.  Plastic roller (Teflon,Custom made):

ME-8112-PT

ME-8122-PT

5. 1/4 steel 3/4 spring (Custom made):

ME-9101-HI

If you want to order something special specification, please call me 886-6-2701207~8 or e-mail to contact us.
