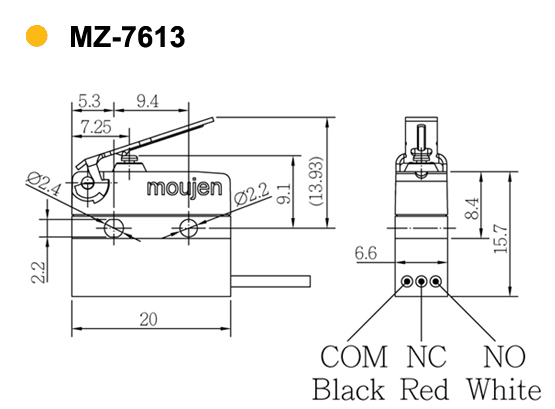

short plain lever type, right side with UL wire

◆ CIRCUITRY

◆ FEATURES

1. MZ-7 Miniature Switch with positive opening operation.

2. Ideal for use in machinery,control units and automation systems.

3. MZ-7 Miniature Switch features positive opening operation of NC contacts even when contacts are welded due to short-circuits or overload currents.

4. Optional actuators available with plain lever or roller lever..

5. Protection degree is for contact are IP40,IP60and IP67.

6. With Silver or Gold or Cu+Ag contact material.

◆ RATING

250V AC

◆CHARACTERISTICS

Operating frequency	Mechanical 200 operations/min.
Contact material	Ag or Au
Contact resistance	100mΩ max.
Insulation resistance	100MΩ mIx.
Dielectric strength	1000V AC,50/60 Hz for 1 minute between terminals of the same polarity.
Ambient operating temperature	-25℃ to +80℃
Ambient operating Humidity	85%～100% RH max.
Service life	Mechanical 500,000 operations min
Degree of protection	IP40, IP60 & IP67

◆ If you want to order something special specification, please call me 886-6-2701207~8 or e-mail to contact us.
