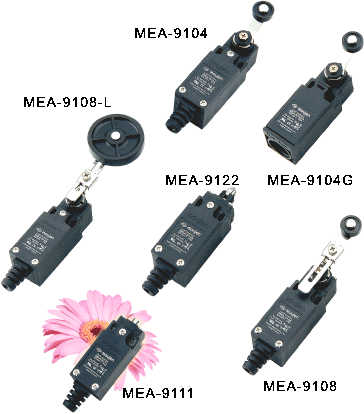

  MINI LIGHT LIMIT SWITCHES  (Made in Taiwan)
FEATURES :
Total plastic enclosure, light weight switches.
Wide choice of heads and actuators.
Captive cover screws.
Mode of operation is field adjustable.
Dustproof, Oil-Tight, Water-Resistant.
2 circuits : 1 N. O., 1 N.C. contacts design.
Tempe. range : +5 to +160 . (-15 to +70).

RATING :

6A 125 OR 250V AC
0.4A 125 V DC

CIRCUITRY :


FIELD ADJUSTABLE :

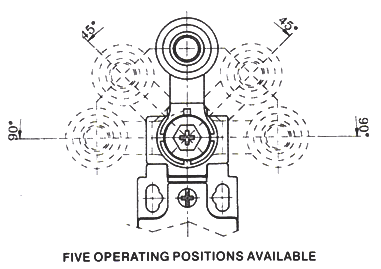

  Rotary motion roller lever and rod actuators are adjustable through 360°. They may be set for operation clockwise, counter-clockwise, or in both directions. Operating heads may be positioned in any of four 90° and four 45° positions.

EASY WIRING :

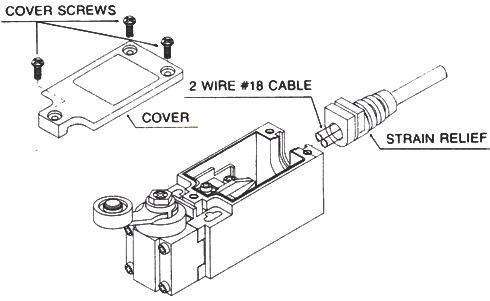

1. Loosen cover screws and remove cover.
2. Remove rubber strain relief from switch cover.
3. Slip strain relief over cable.
4. Fasten terminal screws tightly after inserting cables or terminals.
5. After wiring, insert strain refief into the groove of the switch cover.
6. Fasten 3 cover screws evenly. Do not over tighten.
7. Recommended Cable-# 18/2 SJT Flexible.
