  M22 SWITCHES SERIES  (Made in Taiwan)



M22BZ BUZZER

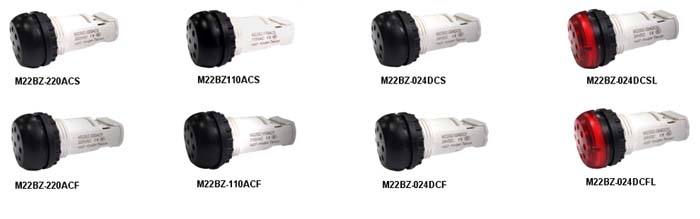

M22BZ Panel mount piezo buzzer / Buzzer with LED indicating light


Description
M22BZ-220ACS
M22BZ-220ACF
M22BZ-110ACS
M22BZ-110ACF
M22BZ-024DCS
M22BZ-024DCF
M22BZ-024DCSL
M22BZ-024DCFL
Dimensions
Ø29.7mm X 53mmL
Current
< 50mA
Input voltage
220VAC
220VAC
110VAC
110VAC
24VDC
24VDC
24VDC
24VDC
Tone
Slow pulse
Fast pulse
Slow pulse
Fast pulse
Slow pulse
Fast pulse
Slow pulse
Fast pulse
Light indication
--
--
--
--
--
--
Red LED
Red LED
Sound decibel Above 80 dB at rated votage within 0.1M distance
Operating temperature
-30℃ ~ +85℃
Storage temperature
-40℃ ~ +85℃
Weight
16 g
16 g
16.5 g
17 g
Life duration
Up to 10,000 Hrs
Fixing
For Ø22mm ~ Ø25mm mounting
Lens color
Black
Black
Black
Black
Black
Black
Red
Red
