	16 M6 SWITCHES SERIES  (Made in Taiwan)

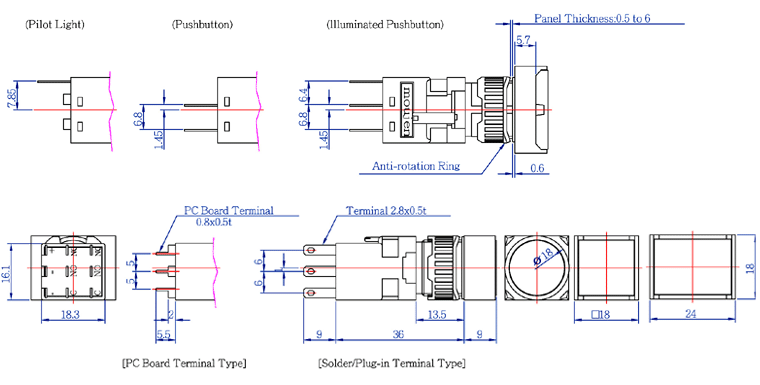

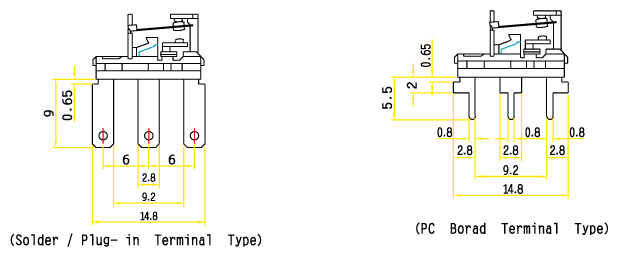

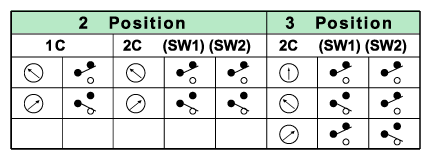

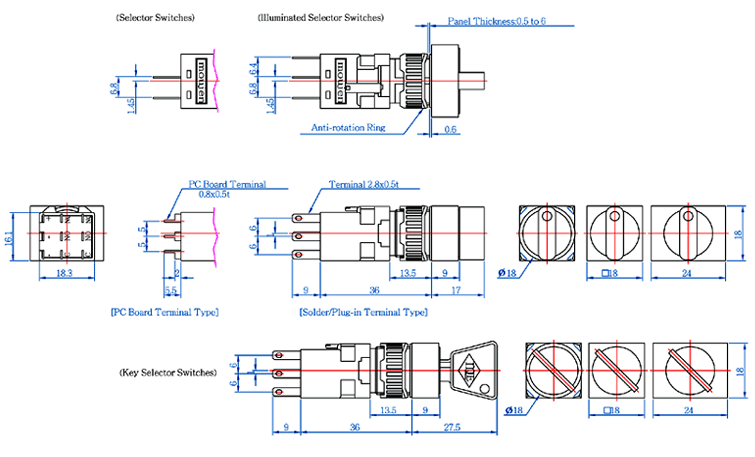

		Dimensions A. Pilot Lights. Pushbuttons. Illuminated Pushbuttons. B. Selector Switches. Illuminated Selector Switches. Key Selector Switches. C. Switch Unit. Terminal Arrangement (Bottom View) Pilot Lights Illuminated Pushbuttons Illuminated Selector Switches Illuminated Emergency Stop Switches Pushbuttons Selector Switches Key Selector Switches Emergency Stop Switches   P.C Board Drilling Layout (Bottom View) Pilot Lights Illuminated Pushbuttons Illuminated Selector Switches Illuminated Emergency Stop Switches Pushbuttons Selector Switches Key Selector Switches Emergency Stop Switches Operating Position / Connect Position (Selector Switches and Key Switches) Panel Cut-Out Panel Cut-Out (Use Dust-Proof Cover)
