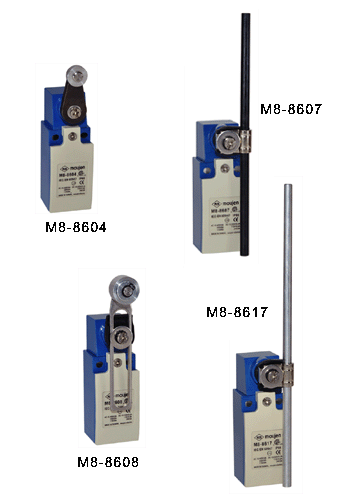

	M8 SERIES Positive Opening Limilt Switches  (Made in Taiwan)
	Technical data: Machanical variables Lifespan Standard-action contact Operations x106 8 Snap-action contact Operations x106 8 Contact temperature of roller head 100 Mechanical shock resistance (half-sinusoidal shock,20ms) Standard-action contact   g 25 Snap-action contact   g 2 Basic unit   g - Operating frequency Operations/h   6000 Actuation       Mechanical       Actuating force at beginning/end of stroke       Basic units 8601   N 1.0 / 8.0 Basic units 8611   N 1.0 / 8.0 Basic units 8602   N 1.0 / 8.0 Basic units 8603   N 1.0 / 8.0 Actuating torque of rotary drives   Nm 0.2 Max. operating speed with DIN cam       Basic units for angle of actuation 8601 a=0 / 30 m/s 1 / 0.5 8604 for angle of actuation a=0 m/s 1.5 8608 for angle of actuation a=30 , L=125mm m/s 1.5 8607 for angle of actuation L=130mm m/s 1.5 8602 for angle of actuation a=30 / 45 m/s 1 8603 for angle of actuation a=30 / 45 m/s 1 8611 for angle of actuation a=0 / 30 m/s 1 / 1
