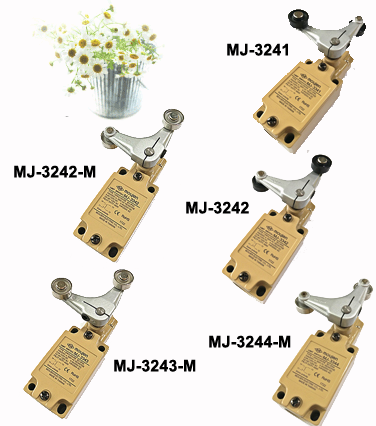

OVERTRAVEL TYPE : |
| |
|
The Overtravel Type is a limit switch which is provided with a greater OT to facilitate dog setting.
Since this type is indentical to the Basic Type in dimension, both types are interchangeable.
The Overtravel Type is classified into two versions -71 series and -72 series.
 -71 series
The head of -71 series switch can be installed in any of the four directions:
45X operation on either side-possible
-72 series
The head of -72 series switch can be installed only in two directions, forward and backward:
90X operation on either side-possible |
| |
|
|
| |
|

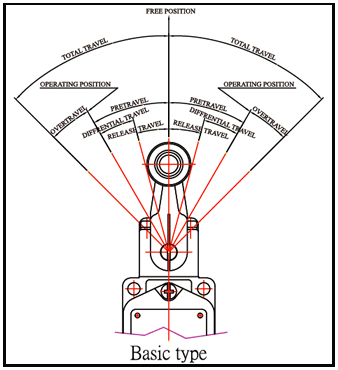

ROTARY ACTUATION : |
| |
|
 |
| |
|
 |
 |
| |
|
REMARK : |
| |
|
MJ-7107L,MJ-7207L 395mm long stick : 395mm |
| |
|
|
| |
|
IN-LINE PLUNGER ACTUATION : |
| |
|

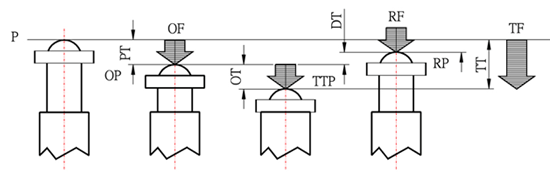

Characteristics:OF-Operating Force;
PT-Pretravel; OT-Over Travel ; DT-Differential Travel
RF-Release Force; OP-Operation Position;
TF-Travel Force; RP-Release Position; TT-Total Travel |
off-left-en.png)
off-right-en.png)
