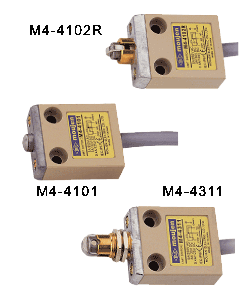

密封式限制開關 (Made in Taiwan)

特性 :

Operating Speed	0.1mm ~ 0.5m/s, M4-4104(4114) 1mm ~ 1m/s
Operating Temperature	-20 ~ +70 (Without freezing)
Humidity	95% RH Max
Operating Frequency	Mechanically : 120 operations/min. Electrically : 30 operations/min.
Contact resistance	300m / Max. (initial) (with 3m Cable)
Insulation resistance	100M / Max. (550V/DC)
Dielectric strength	Between non-continuous terminals: 1000V AC 50/60Hz i minute. Between each terminal and non-current-carrying metal part and Between each terminal and ground : 1500V AC 50/60Hz i minute.
Vibration	Malfunction durability : 10~50Hz ; 1.5mm double amplitude.
Shock	Mechanically durability : 1000 m/sec² (approx 100G) Malfunction durability : 300 m/sec² (approx 30G)
Service life	Mechanically : 2,000,000 operations min.(Standard) 500,000 operations min. (Positive Opening Contacts) Electrically : 200,000 operations min,(1.5A,110VAC)MAX.
Protection Degree	IEC : IP67

ORDERING CODE

AC TYPE	DC TYPE	Cable length
M4-QAC-2	M4-QDC-2	2m
M4-QAC-4	M4-QDC-4	4m
M4-QAC-6	M4-QDC-6	6m
