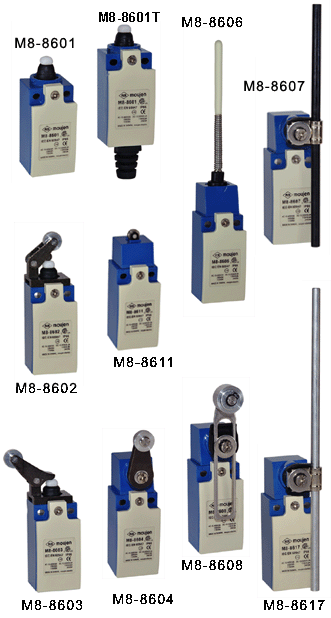

  M8 系列  強制脫離 行程開關 (Made in Taiwan)

Technical data:
General
Standards IEC/EN 60947
Climatic proofing Damp heat, constant,, to IEC 60068-2-78
Damp heat, cyclic. to IEC 60068-2-30
Ambient temperature -25 / +70
Mounting position As required

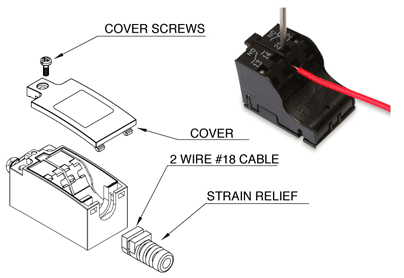

Degree of protection IP66. IP65 for "T" Type with rubber strain

Contacts/switching capacity
Rated impulse withstand voltage Uimp VAC 4000
Rated insulation voltage Ui V 400
Overvolatge category/pollution degree III/3

Rated operational current
AC-15 24V Ie A 6
230V/240V Ie A 6
400V/415V Ie A 4
DC-13 24V Ie A 10
110V Ie A 1
220V Ie A 0.5

Control circuit reliability
at 24V DC / 5mA HF Fault probability <10-7,<1 failure at 107 operations
at 5V DC / 1mA HF Fault probability <10-6,<1 failure at 5x106 operations
Supply frequency Hz max. 400

Short-circuit rating in the closed state (IEC / EN 60947-5-1)
Fuseless Type PKZM0-10 FAZ-B6/1
Max. Fuseless A gG / gL 10
Short-circuit rating to IEC / EN 60947-5-1
Max. Fuseless A gG / gL 6
Repetition accuracy mm 0.02
