 功能 : |
 功能遵照歐規及美規系統製造 |
| 強制脫離接點. |
| PC 透明外殼容易分辨內部動作. |
| IP40保護等級. |
| 螺絲,焊接及# 250 快速端子可供選擇 |
| |
|
額定電流電壓 : |
| |
| UL-508 |
6A/125 or 250 VAC
0.5A/125 or 250 VDC |
| IEC |
AC-15 6A/230VAC (10A MAX)
DC-13 6A/24 VDC (10A MAX) |
|
| |
|
|
電器迴路 : |
| |
 |
 |
| |
|
 |
|

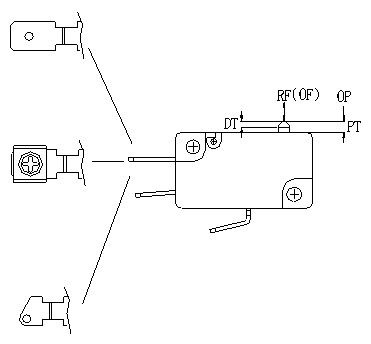

端子種類 : |
| |
 |
|
訂購代號 : |
| |
 |
32--Fasten terminal
快速端子
T=0.8mm
#250x3 |
| |
|
|
代號舉例說明 : |
| |
1. MVS-3304 螺絲端子短輪 |
| |
 |
33--Screw terminal
螺絲端子
T=0.8mm
M
3x0.5 screw |
| |

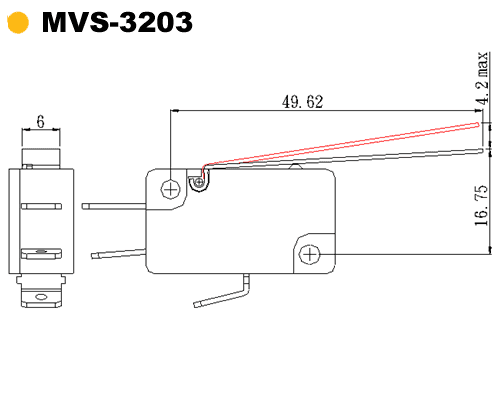

2. MVS-3203 快速端子長柄 |
| |
 |
34--Solder terminal
焊接端子
T=0.8mm |
| |

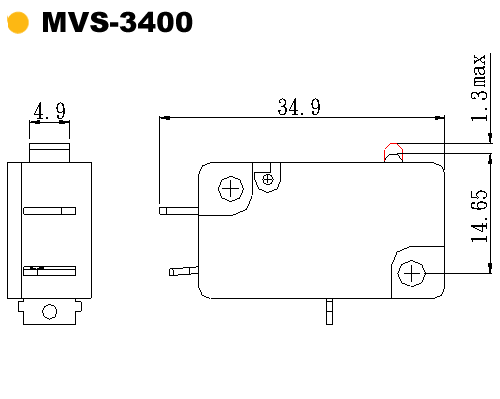

3. MVS-3400 焊接端子按鍵 |
| |
 |
| |
|
|
特性 : |
| |
| Operating speed |
0.01 to 1m/sec. |
| Operating frequency |
mechanically 60 operations/min. |
| Contact resistance |
30mΩ max. |
| Dielectric strength |
1000 VAC, 50/60 Hz for 1 minute between non-continuous terminals. |
| Operating temperature |
-40° C ~ +85° C |
| Storage humidity |
85% RH max. |
| Service life |
mechanically: 5,000,000 circle.
electrically: 500,000 operation, (1.5A, 110VAC)MAX. |
| Protection degree |
IP 40. |
|
| |
|
|

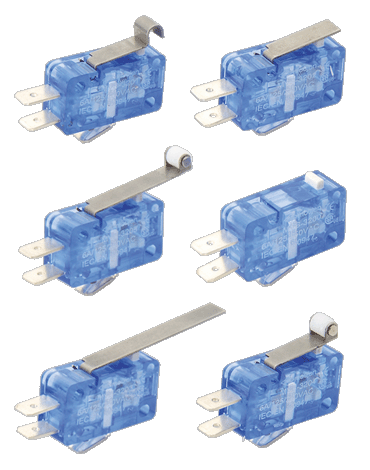

頭部動作柄種類:
|
| |
|
off-left-tw.png)
off-right-tw.png)
