  M22 SWITCHES SERIES  (Made in Taiwan)
  Accessories

Contact Blocks Green is type NO , Red is type NC
Front fixing
      Code
Screw terminals → NO(A接點) SF-NO
→ NC(B接點) SF-NC
Clamp terminals → NC(B接點) CF-NC
→ NO(A接點) CF-NO
PCB terminals → NO(A接點) PF-NO
→ NO(B接點) PF-NC
Base fixing
      Code
Screw terminals → NO(A接點) SB-NO
→ NC(B接點) SB-NC
Clamp terminals → NC(B接點) CB-NC
→ NO(A接點) CB-NO

LED Element




PF-E30
Front fixing Rated Rated Power
  Operational Voltage Operational Current Consumption Code
Screw terminals 12-30 VAC/DC 5~14mA 0.26W/24V SF-E30
85-264VAC 50/60Hz 5~15mA 0.33W/24V SF-E230
Clamp terminals 12-30 VAC/DC 5~14mA 0.26W/24V CF-E30
85-264VAC 50/60Hz 5~15mA 0.33W/24V CF-E230
PCB terminals 12-30 VAC/DC 5~14mA 0.26W/24V PF-E30

Base fixing Rated Rated Power
  Operational Voltage Operational Current Consumption Code
Screw terminals 12-30 VAC/DC 5~14mA 0.26W/24V SB-E30
85-264VAC 50/60Hz 5~15mA 0.33W/24V SB-E230
Clamp terminals 12-30 VAC/DC 5~14mA 0.26W/24V CB-E30
85-264VAC 50/60Hz 5~15mA 0.33W/24V CB-E230

M22LC-Bulb
Incandescent Bulb
Code Operating Voltage Operational Current
06 6VAC/DC 200mA
14 14VAC/DC 80mA
28 28VAC/DC 40mA
120 120VAC/DC 25mA


LED Bulb
Code Operating Voltage
E06 6VAC/DC
E12 12VAC/DC
E24 24VAC/DC
E110 110VAC/DC
E220 220VAC/DC

Front ring (Code : FR)
Black M22-FRB(Code)
Silver M22-FRS(Code)
Gold M22-FRG(Code)

Threaded ring (Code : TR)
Plastic

M22-TRP(Code)
Metal M22-TRM(Code)

M22-A3 Fixing adapter For 3 elements M22-A4 Fixing adapter For 4 elements
Code : A3 Code : A4

M22E-GR Guard ring for Emergency-stop M22E-GRC Guard ring cover for Emergency-stop
Code : GR Code : GRC

Button Plates
D.P.
FP, XP, MP


Legend Plates

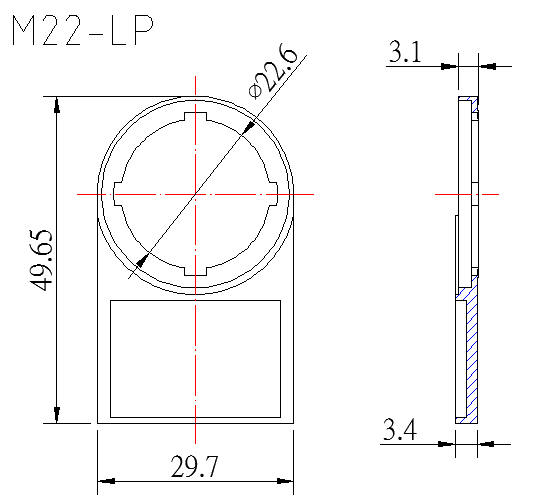

Code : M22-LP

Mounting Wrench
Code : M22-MW

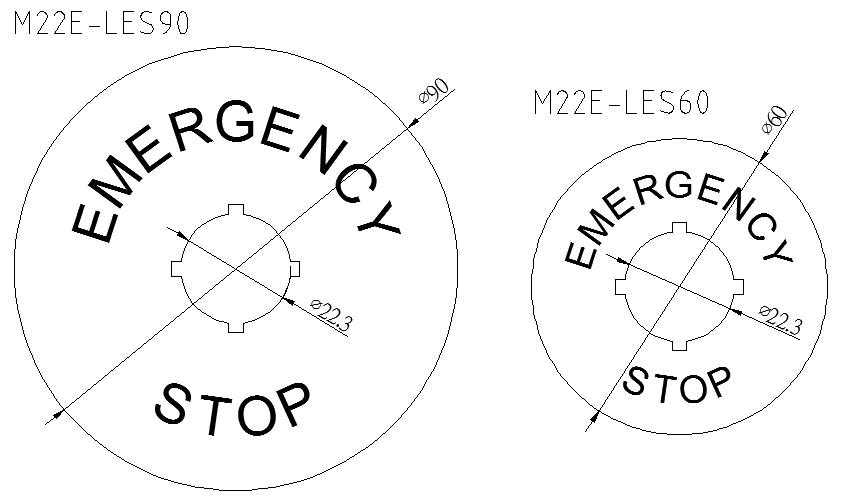

Label for ES
Code : M22E-LES

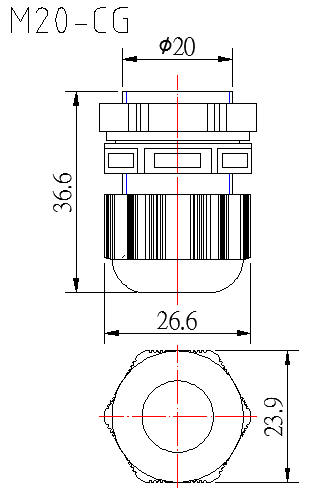

M20-Cable Gland
M20 * P1.5

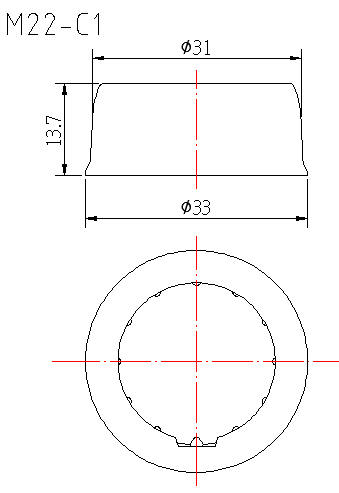

C1 Dust Protection Caps For M22 FP
Code : M22-C1

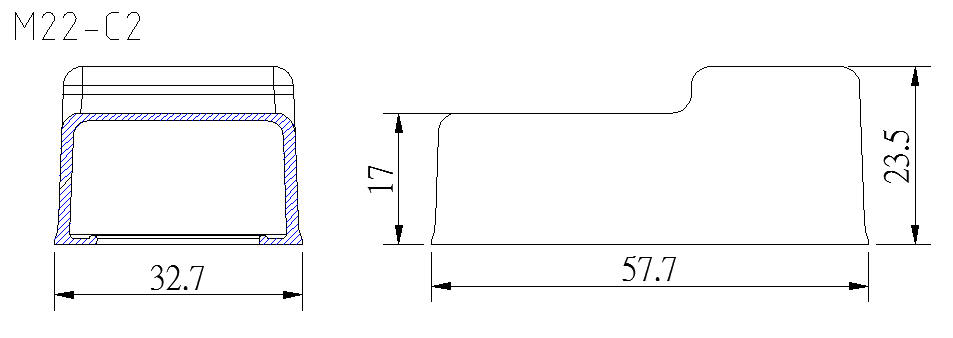

C2 Dust Protection Caps For M22 DP
Code : M22-C2
