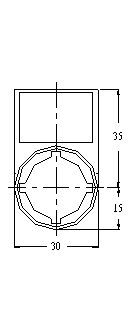

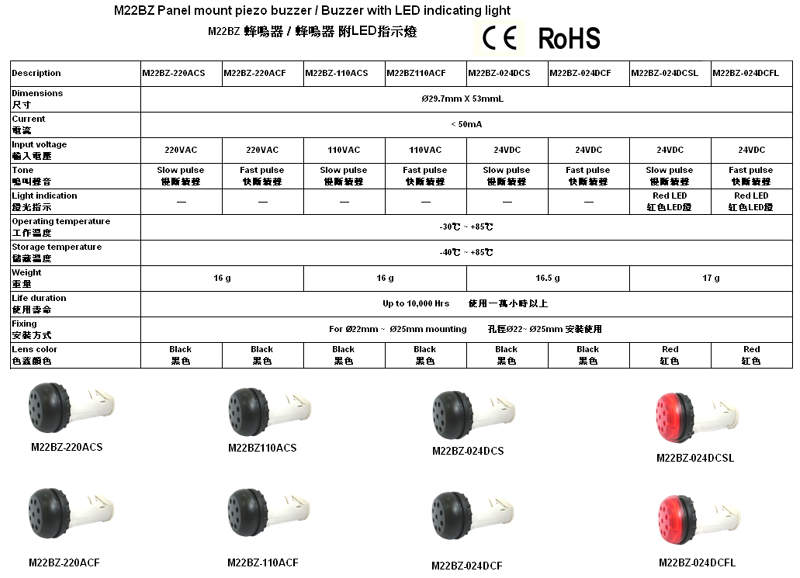

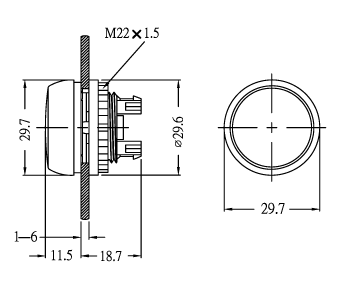

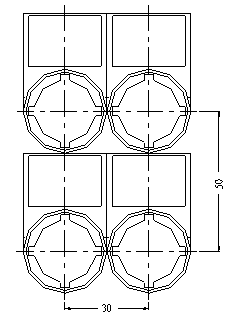

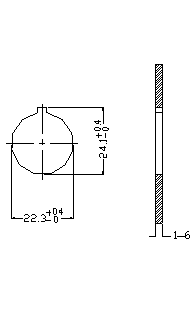

Pilot Lights Dimension |

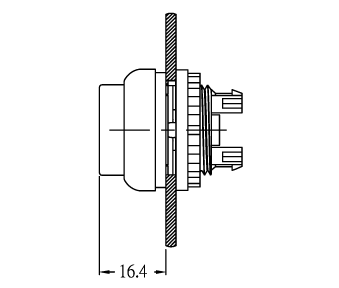

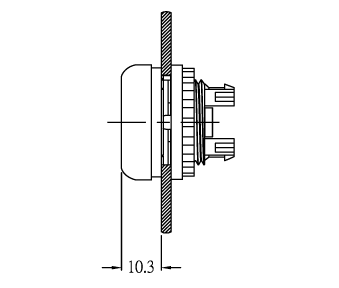

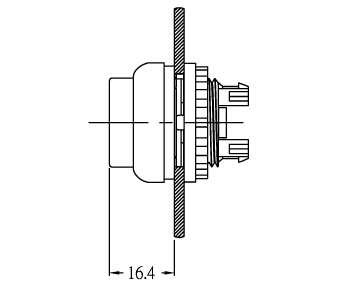

Pushbutton actuators |
 |
 |

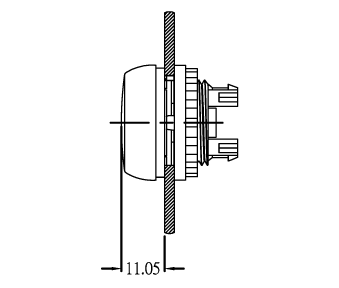

Pushbutton actuators |
Pushbutton actuators |
 |
 |

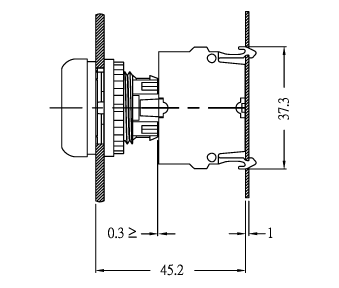

SB Pushbutton in base fixing |

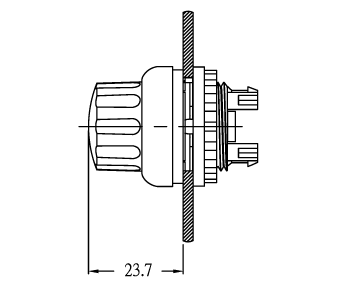

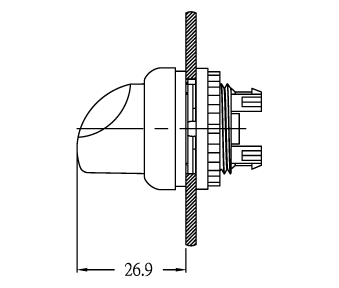

Selector switch actuators |
 |
 |
Selector switch actuators |

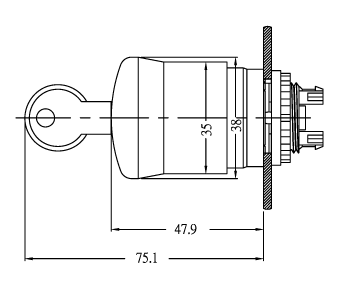

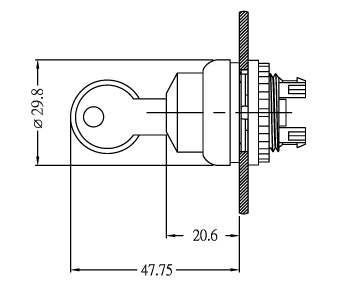

Key-operated actuators |
 |
 |

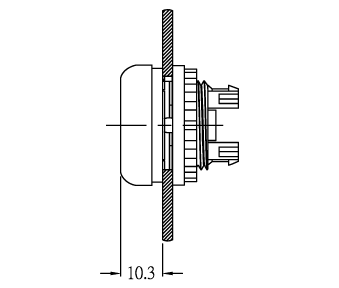

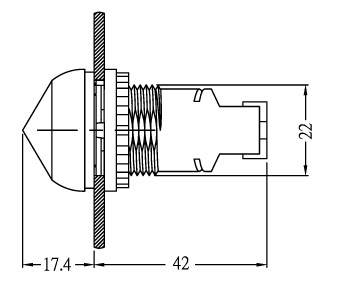

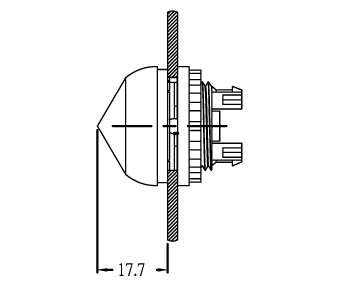

Pilot Lights |
Pilot Lights |
 |
 |
Illuminated pushbuttons |
Illuminated pushbuttons |
 |
 |

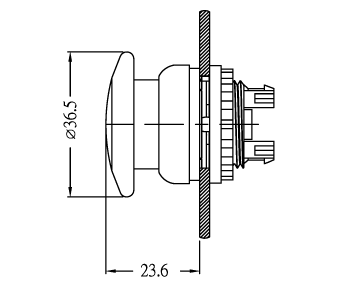

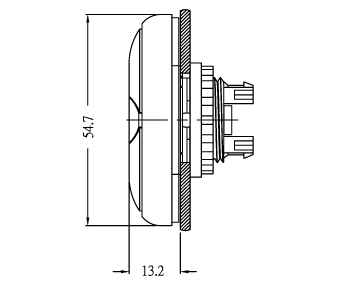

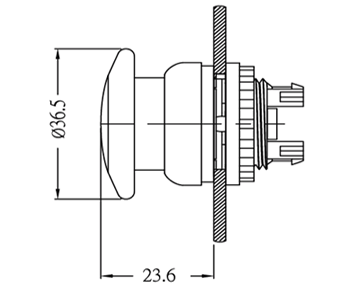

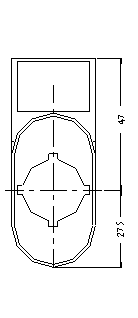

Mushroom buttons |

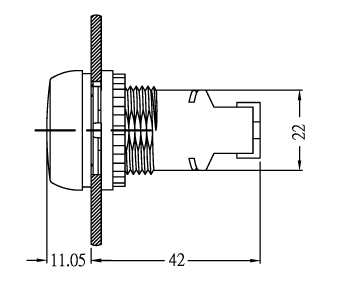

Compact Pilot Lights |
 |
 |
Compact Pilot Lights |
Emergency-Stop actuators |
 |
 |
Fixing adapter |
Fixing adapter |
 |
 |

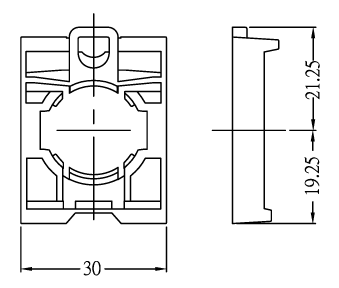

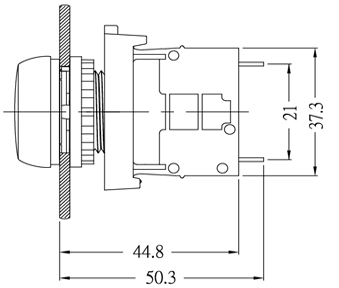

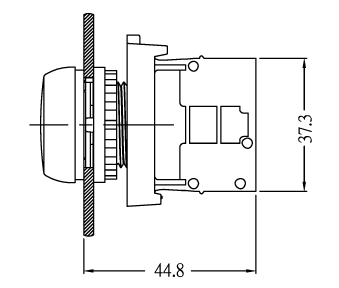

Switch block front fixing |

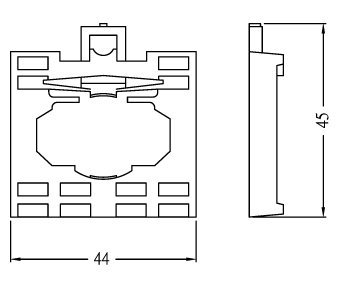

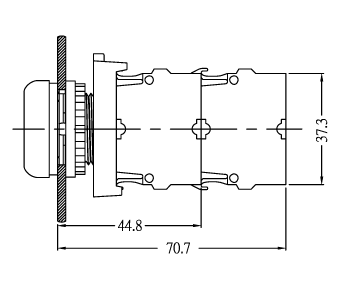

Plus second layer switch block |
 |
 |
Mushroom buttons
Illuminated Mushroom buttons |

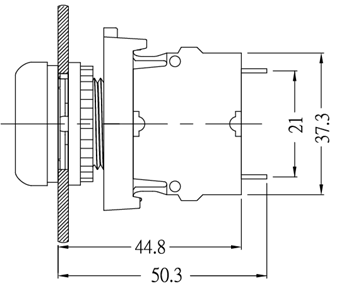

PCB terminals (LED Element) |
 |
 |
PCB terminals (NO&NC) |
|
 |
|

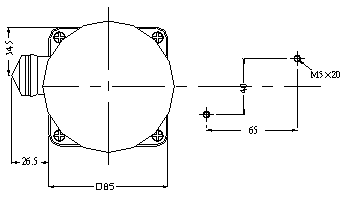

Foot and palm switchs |
  |

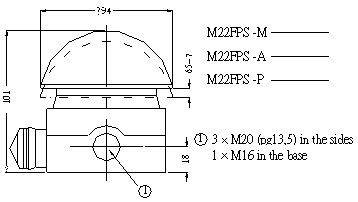

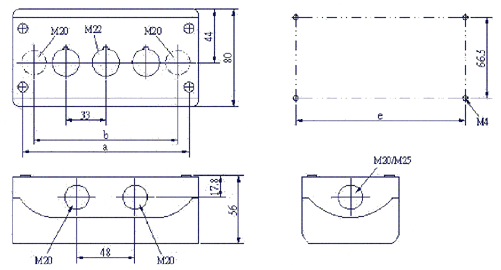

Switch Box B1~B6 |

Type |
Mounting |
a |
b |
e |
Cable entries |
B1 |
1 |
72 |
42.6 |
58.5 |
2xM16 |
3xM20 |
2xM25 |
B2 |
2 |
120 |
85.6 |
106.5 |
2xM20 |
3xM20 |
2xM25 |
B3 |
3 |
153 |
118.6 |
139.5 |
2xM25 |
2xM25 |
4xM20 |
B4 |
4 |
186 |
151.6 |
172.5 |
2xM20 |
2xM25 |
4xM20 |
B6 |
6 |
252 |
217.6 |
238.5 |
2xM20 |
2xM25 |
4xM20 |
|
