	M22 SWITCHES SERIES  (Made in Taiwan)

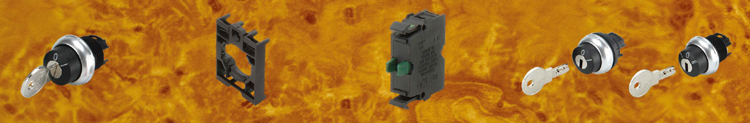

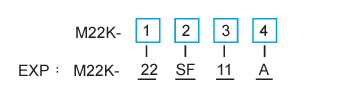

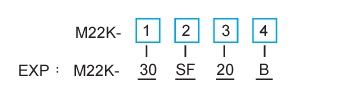

	M22K Key-operated Actuators Switch Operation Position Code 2 positons(40 spring return) 22 2 positons(60 stay-put) 20 3 positons(40 spring return) 32 3positons(60 stay-put) 30 Wiring terminal Wiring terminal Code Screw Terminals with Fixing on Adapter SF Screw terminals with Fixing on Base SB Clamp terminals with Fixing on Adapter CF Clamp terminals with Fixing on Base CB PCB terminals with fixing on adapter PF Contact switch block Contact switch block Code NO+NC(1A+1B) 11 NO(1A) 10 NC(1B) 01 2NO(2A) 20 2NC(2B) 02 Key withdrawable in position Key withdrawable in position 2 positions 3 positions A B C A B C D E F G O O . I O O I . O . II I . O . O . II . O I . II . I .   Type No. Example         1. M22K-22SF11A   2. M22K-30SF20B
